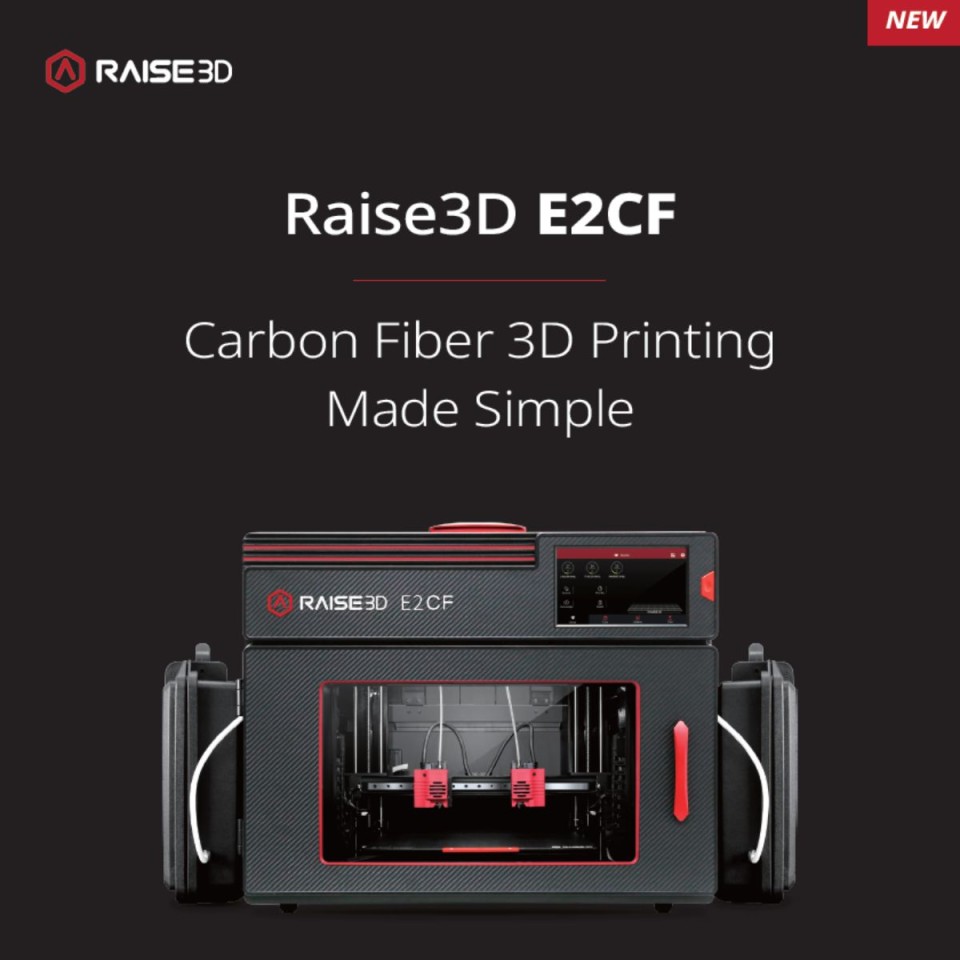

Carbon fiber 3D printing made easy

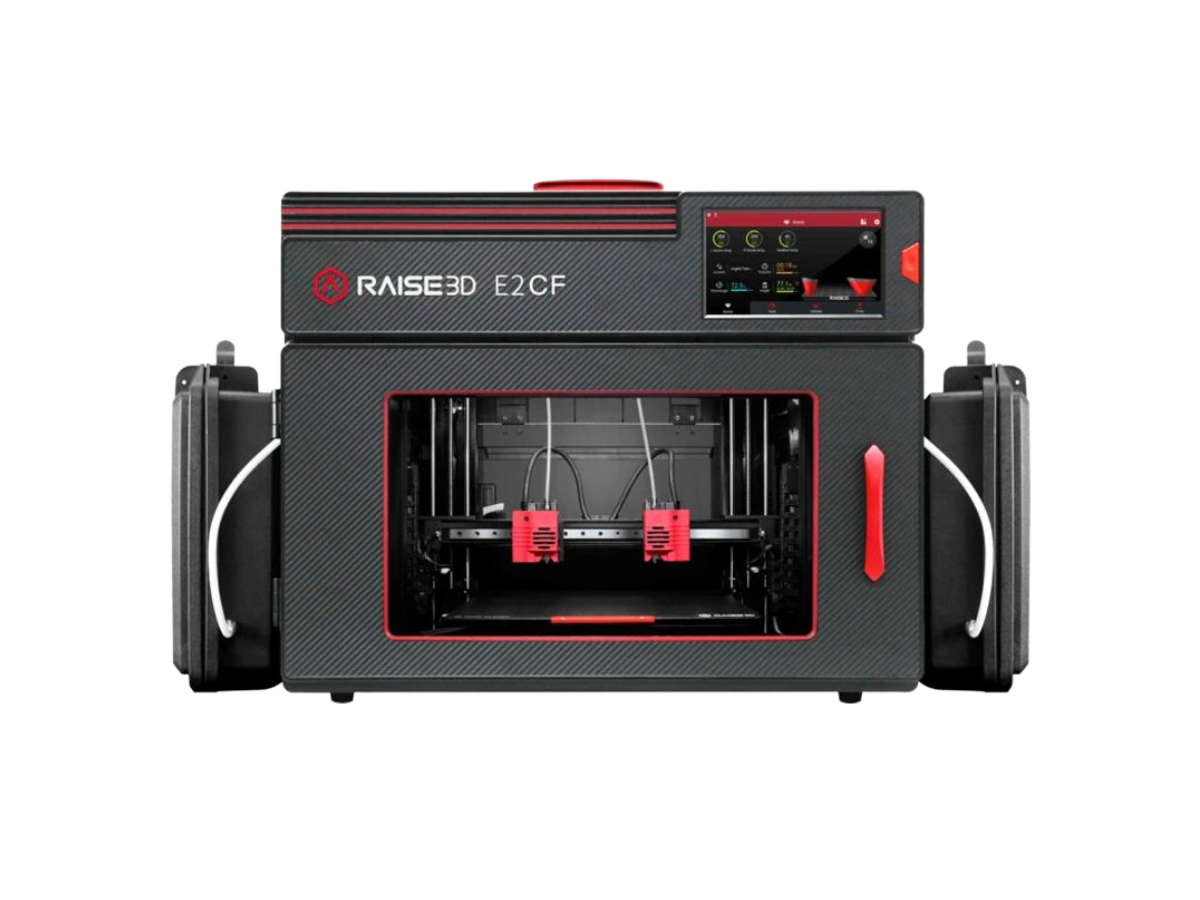

Based on the award-winning Raise3D E2 3D printer, the Raise3D E2CF is designed for printing fiber-reinforced materials and optimized for carbon fiber.

Ahmed Abo Seada Account Manager

The Raise3D E2CF meets the requirements of various industries, such as automotive, aerospace and healthcare, which need to produce components with a high strength-to-weight ratio and consistent high quality.

The Raise3D E2CF is specifically designed for carbon fiber reinforced materials and can print brake-away support structures. The two dry boxes for material storage and the improved extruder enable a smooth printing process for composites.

The Raise3D E2CF printers can be easily connected to Raise3D's 3D printing software ecosystem, which includes ideaMaker slicing software and RaiseCloud management software.

Advantages

Hardened nozzles

The Raise3D E2CF's 3D printing nozzles are specially made of hardened metal to handle abrasive materials with ease.

Dual direct drive extruder system

The gears of the Raise3D E2CF are made of high-strength steel and have been heat-treated for better wear resistance. With a custom tooth profile, the filament is held firmly in place to ensure it does not slip during extrusion. The power of the device has been increased to ensure the stability of the print.

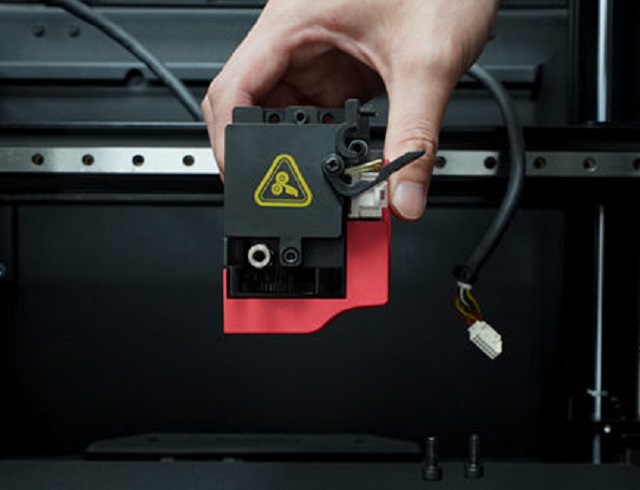

Easily replaceable printheads

The printheads are easily removable so that one printhead can be easily exchanged for another. The exchange may be necessary if, for example, a different printhead with a different nozzle diameter is to be used.

Replacement Easy Swap printheads can be prepared with hardened nozzles in various sizes, such as 0.4, 0.6 and 0.8 nozzles.

IDEX

The Raise3D E2CF is an IDEX 3D printer. IDEX stands for Independent Dual Extruders, which means that the extruders can operate independently along the same axis during printing to perform advanced functions.

Mirror mode prints a model and an inverse of the same model at the same time. This saves the creation of a second design file for the inverse model and time when printing separately.

Duplicate mode is a synchronized print where both extruders print the same model at the same time.

Build volume

The Raise3D E2CF has the same build volume as the E2:

Single Extruder Print: 330 × 240 × 240 mm (13 × 9.4 × 9.4 in.)

Dual extruder printing: 295 × 240 × 240 mm (11.6 × 9.4 × 9.4 in.)

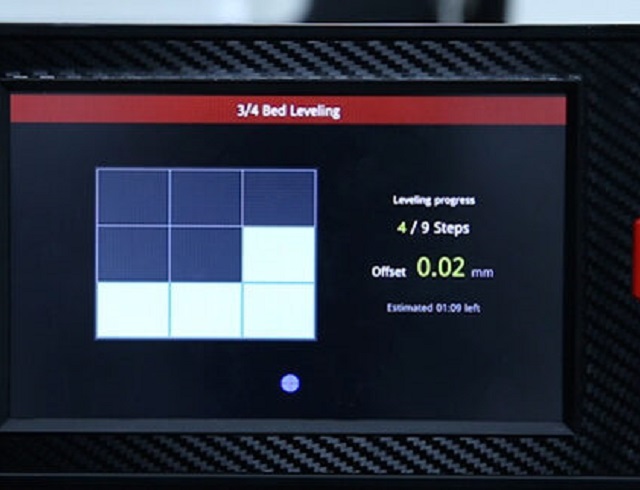

Automatic leveling of the print bed

The Raise3D E2CF has an automatic leveling function. Automatic print bed leveling keeps the distance between the print nozzles and the print bed constant to create a uniform print surface. This improves the adhesion of the print bed and allows the extruder to adapt to even the smallest changes in surface contour for better print quality.

Raise3D Filament Drying Box

The built-in hanging trays are used to place the filament and allow the material to feed more evenly. When the dry box is closed, the material can be effectively protected from dust and moisture for up to 30 days.

Raise3D Industrial PA12 CF Support Filament

Raise3D Industrial PA12 CF Support Filament is a breakaway support material specifically designed for carbon fiber-reinforced composite filaments. During the 3D printing process, it forms a stable support structure that ensures good adhesion to the printed surfaces and counteracts any tendency to warp. This significantly improves the surface quality of the overhangs and recesses of the printed objects. After printing, the carrier structure can be easily removed or broken off from the printed parts. This substrate has broad compatibility with many high-performance carbon fiber-reinforced composite filaments and is more cost-effective compared to the water-soluble substrate.

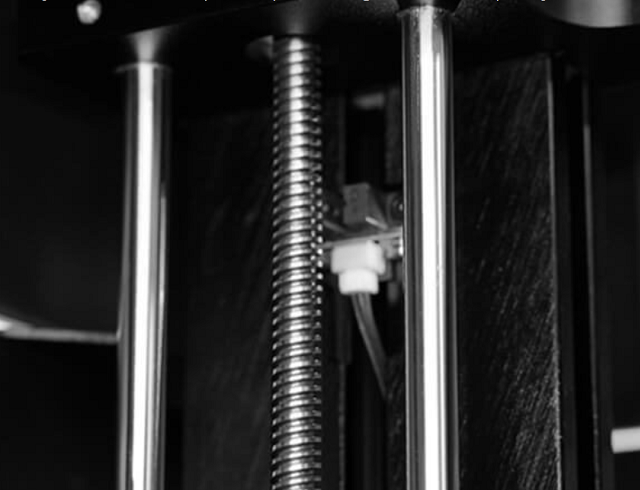

Precise positioning

The Raise3D E2CF desktop 3D printer features a special drive system that enables smooth gliding during printing. To ensure the highest level of accuracy for 3D printing processes, this motion system works with extremely precise positioning.

ideaMaker Slicing Profiles

The Raise3D E2CF features slicing profiles that have been extensively tested and verified by Raise3D engineers in ideaMaker. You do not need to adjust the parameters before printing. Enjoy easy and high-quality printing.

Like other Raise3D products, the E2CF can realize series production and intelligent management with ideaMaker as the core software solution.

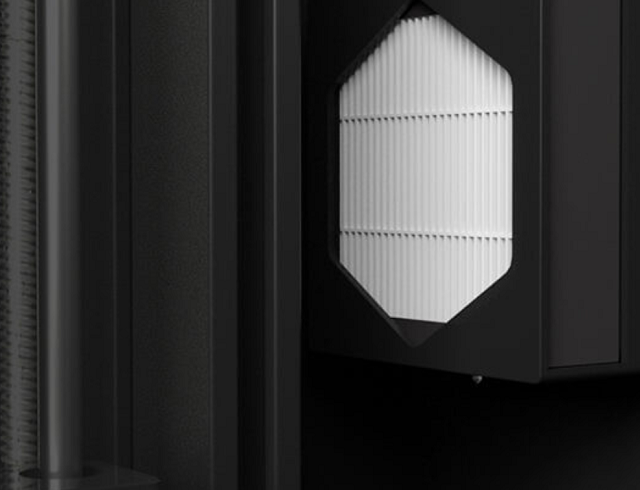

HEPA air filter

The Raise3D E2CF desktop 3D printer has a HEPA air filter that cleans the air of all particles (including nanoparticles) released during the 3D printing process. The HEPA air filter works effectively in classrooms, offices, and large and small workshops.

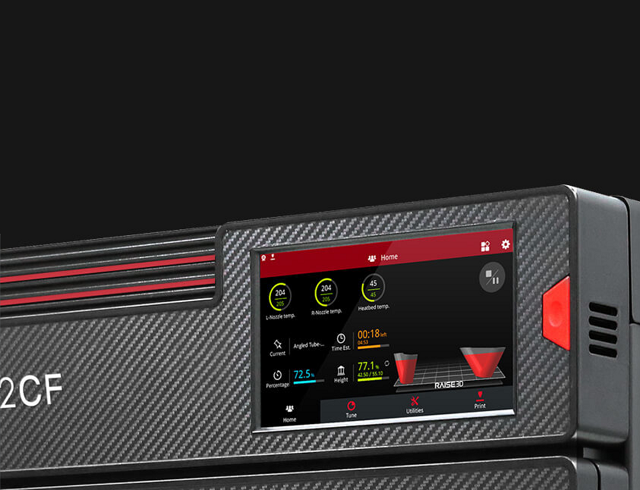

7-inch touchscreen

The 7-inch touchscreens allow users to interact directly with the printer. It provides visual support and model selection to simplify control and monitoring of the printing process.

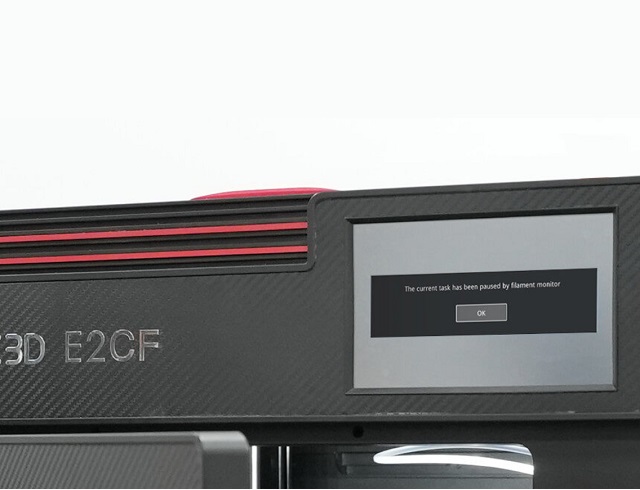

Resume printing in the event of a power failure

The Raise3D E2CF has a filament run-out sensor that warns when the filament is almost empty and saves the print. It also has a second-generation power failure feature that allows printing to resume from where it was previously saved in the event of a power failure.

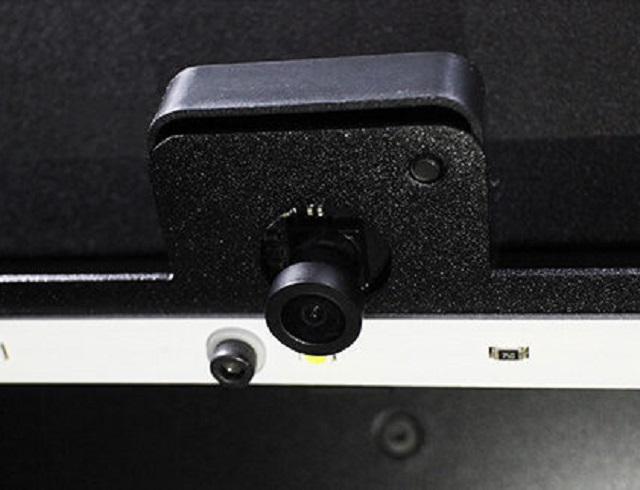

Integrated camera

The complete 3D printing process of each print job is monitored by the Raise3D E2CF with a camera. By connecting to RaiseCloud, the user is enabled to monitor each print process remotely and on mobile.

Applications

Replacement of metal parts

Sometimes parts with sufficient strength can be manufactured to replace equivalent parts made of metal.

Functional parts

Fiber-reinforced 3D printing materials enable the production of functional, dynamic parts that can withstand the demands of continuous use.

Tools for manufacturing

Raise3D enables users to quickly produce specific, customized solutions for their manufacturing. It eliminates the need for molds, castings, or subcontractors and provides benefits that would be impossible to achieve with traditional manufacturing methods.

Parts and tools for the end user

Parts for immediate use can be produced quickly and meet very specific requirements for all conceivable applications.

Data Sheet: Raise3D E2CF
